Biomass Pellets Fired Aluminum Melting Furnace

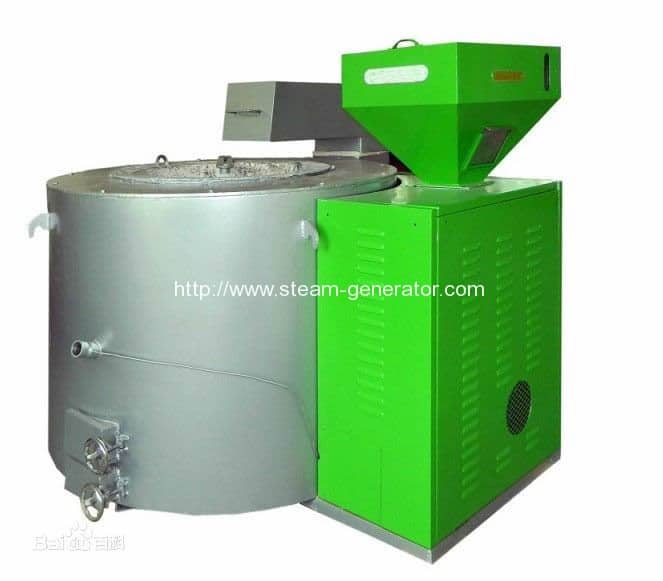

Biomass pellet fired aluminium melting furnace

Romiter Machinery’s new biomass pellet melting aluminum insulation furnace combining the molten aluminum technology, mainly used for melting or melting aluminum, zinc, lead, tin, cadmium and other low melting non-ferrous metal and alloy, Generally with die casting machine,also can be used in liquid aluminum insulation, depassing, refined. With high efficiency and energy saving, low carbon enviromental protection, operation simple maintenance, is the alternative fuel, gas, coke oven, electric stove in the best products, can help enterprises reduce 30%-60% of the energy consumption costs.

wood-pellet-fuel

Biomass Pellets


Biomass Pellets are made from natural wood or agri waste. They are dry and usually have less than 10% moisture. A fine wood substance is compressed through a cylinder which can then disintegrate. The cylinders are small at 10cm diameter and the concentrated compression  makes them very dense; this factor leads them to have one of the best energy efficiency ratings when compared to other fuels.

Fuel Cost Comparison for Aluminium Melting Furnace


Kinds of fuel Electric Diesel oil Natural gas Biomass wood pellet
Heat value of fuel  860kcal/kw 10200/kg 8500kcal/nm3 4000kcal/kg
Consumptions of aluminium/t 500 W 100kg 120Nm3 250kg
Cost of aluminium/t RMB450 RMB800 RMB576 RMB275
Dissolved aluminum water/day 1.6t 1.6t 1.6t 1.6t
Cost per day RMB720 RMB1280 RMB921.6 RMB440
Biomass to save every day RMB280 RMB840 RMB481.6
Biomass to save every month RMB8400 RMB25200 RMB14430
Biomass to save every year RMB84000 RMB252000 RMB144300
Rate of Energy 38% 65% 52%

Advantage Feature of Biomass Pellets Fired Aluminum Melting Furnace


  1. Environment friendly renewable fuel: no smoke, clean and renewable. The sulfur content , ash content, nitrogen content is very lower than carbon and oil. Biomass fuel can realize zero emission, which is called “Green-coal”
  2. Low cost and high efficient: the cost for using biomass pellet is very low than oil. Help factory save a lot of investment and reduce cost. The biomass pellets fired aluminum melting furnace cost is just 1/2 oil fired aluminum melting furnace or 1/3 electric heating aluminum melting furnace.
  3. Pellet is easy to transport: compressed biomass fuel as pellet, which makes the fuel easy transport, high calorific value and easy to store.

Technical Parameter Table


We can provide 300kg/h to 800kg/h device for customer , other capacity please contact with us, we can provide customized aluminum melting furnace

Working Video of Aluminium Melting Furnace




Company Profile


Romiter Group concentrating on supply high efficient and high intelligent boiler for customer. Main products include wood pellet hot water boilers, wood pellet steam boiler, wood pellet burner, coal fired thermal oil heater, diesel oil fired thermal oil heaters, biomass steam generator(wood dust, corncob, bagasse, rice husk, palm kernel shell), coal fired hot air generator, wood pellet hot air furnace, electric steam generator, coal fired steam generator, coal water slurry steam generator, diesel oil or gas steam generator, thermal oil steam generators, heat recovery steam generator (HRSG).
