Horizontal Electric Steam Boilers

horizontal-electric-steam-boilers

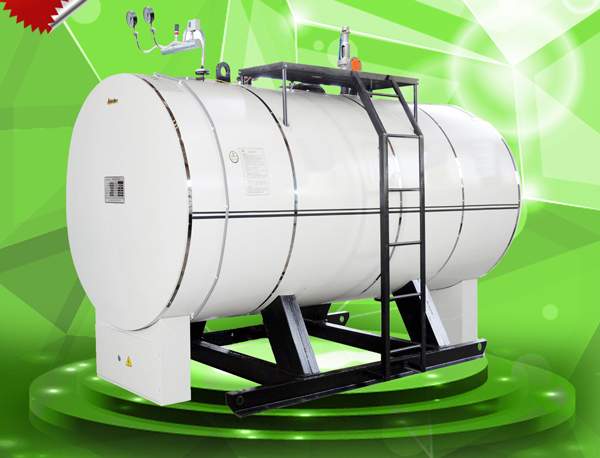

Electric Steam Boilers Electric Steam Boilers is a large-power horizontal steam boiler, furnace and electrical control cabinet is separated, avoiding electrical components’ aging then effect service life, running quiet and meet environmental protection requirements, there is no NOx emission to the atmosphere. Operating with PLC control system, free operating button, free light, touch screen panel, Chinese & English display, human-computer dialogue, action authorized, real-time information, and auto turn-page.

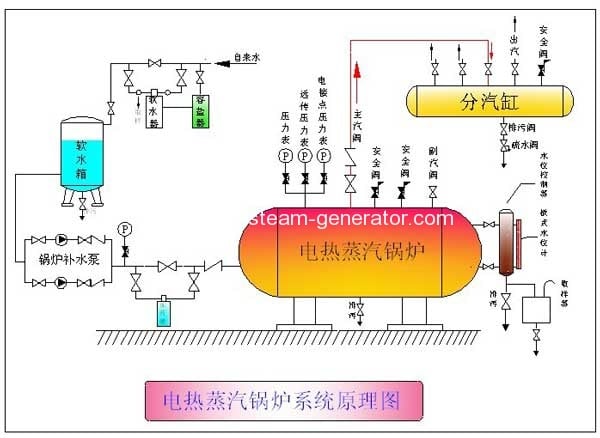

Horizontal Electric Steam Boiler Connection Drawing

electric-steam-boilers

Parameter Table of Electric Steam Boilers

Item Rated Power Power Rated Pressure Rated Steam Temperature Efficiency Water Volume Steam Outlet Weight Tranportation Dimension
LDR0.06-0.4 0.06 45 0.4 151 99 0.27 DN25 230 900*750*1545
LDR0.1-0.4 0.1 75 0.4 151 0.32 DN25 340 900*750*1610
LDR0.2-0.4 0.2 150 0.4 151 0.44 DN25 440 900*750*1970
LDR0.3-0.7 0.3 240 0.7 170 0.75 DN32 610 1212*1262*2030
LDR0.5-0.7 0.5 360 0.7 170 1.28 DN40 745 1312*1460*2230
WDR0.5-0.7 0.5 360 0.7 170 1.02 DN40 755 2406*1278*1695
WDR0.7-0.7 0.7 540 0.7 170 1.28 DN40 905 2456*1360*1795
WDR1-0.7 1 720 0.7 170 1.58 DN50 1060 2586*1480*1855
WDR2-1.25 2 1440 1,25 194 1.85 DN80 1280 2780*1680*2060

Working Video of Electric Steam Boilers



Company Profile

Romiter Group concentrating on supply high efficient and high intelligent boiler for customer. Main products include wood pellet hot water boilerswood pellet steam boilerwood pellet burnercoal fired thermal oil heaterdiesel oil fired thermal oil heatersbiomass steam generator(wood dust, corncob, bagasse, rice husk, palm kernel shell), coal fired hot air generatorwood pellet hot air furnaceelectric steam generatorcoal fired steam generator, coal water slurry steam generatordiesel oil or gas steam generatorthermal oil steam generatorsheat recovery steam generator (HRSG).
