Vertical Gas & Oil Fired Hot Water Boilers

Vertical-Gas-or-Diesel-Oil-Fired-Hot-Water-Boilers-3

Oil & Gas fired hot water boiler is widely used in factory, school, hotel, restaurant, hospital, residence community, bath center, indoor pool.

Advantage Feature of Oil & Gas Fired Hot Water Boilers




  1. Compact Structure: Vertical boiler occupies small space, light weight, intelligent control. Boiler tube has spoiler inside, this design increase heat conductive effect and realize high efficient.
  2. PLC touch screen control: PLC touch screen control system, display the running condition of hot water boiler, easy for operation.
  3. High intelligent operation: Automatic blowing, automatic ignition, automatic burner power ratio adjustment, and flameout protection system
  4. Pipe frost protection: if there is danger for pipe frost, hot water boiler will automatic ignition to avoid frost protection.
  5. Safety Operation: hot water boiler running at atomosphere pressure, and protection system for water leakage, over temperature protection system.
  6. Top Brand Burner: Reillo or Balture burner make sure stable performance of hot water boiler.

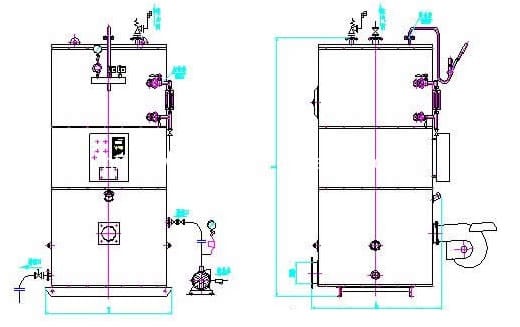

 Oil & Gas Fired Hot Water Boiler Sturcture Drawing




Vertical-Gas-or-Diesel-Oil-Fired-Hot-Water-Boilers-4

 Manufacture Process of Gas & Oil Fired Hot Water Boilers


Vertical-Gas-or-Diesel-Oil-Fired-Hot-Water-Boilers-2

Parameter Table of Vertical Gas & Oil Fired Hot Water Boilers


Item/Model

CLHS0.08

CLHS0.12

CLHS0.17

CLHS0.23

CLHS0.35

CLHS0.47

CLHS0.70

95/70-YQ

95/70-YQ

95/70-YQ

95/70-YQ

95/70-YQ

95/70-YQ

95/70-YQ

Rated power

Kcal/h

7×104

10×104

15×104

20×104

30×104

40×104

60×104

Mw

0.08

0.12

0.17

0.23

0.35

0.47

0.7

Heating room

m2

875

1250

1875

2500

3750

5000

7500

Inlet/outlet Temperature



95/70

95/70

95/70

95/70

95/70

95/70

95/70

Circulating water

 m3/h

5

7

10

13

20

27

40

Hot water capacity

m3/h

2.3

3.3

5

6.7

10

13

20

Diesel

kg/h

7.43

10.9

15.5

20.9

31.9

42.9

63.8

Natural gas

Nm3/h

8.73

12.9

18.4

24.8

37.9

51

75.9

Coal gas

Nm3/h

19.8

29.2

41.6

56.1

85.8

151.4

171.8

Heating efficiency

%

90%-92%

water Inlet/outlet

mm

DN40

DN40

DN50

DN65

DN80

DN80

DN80

atmospheric pipe

mm

DN40

DN40

DN50

DN65

DN80

DN80

DN80

Bath water outlet

mm

DN20

DN20

DN20

DN20

DN20



Drain outlet

mm

DN40

DN40

DN50

DN65

DN80

DN80

DN80

Chimney

mm

φ140

φ165

φ165

φ219

φ219

φ219

φ300

Outside Size mm

Length

950

995

1080

1141

1446

1588

2320

Width

670

670

760

820

980

1080

1400

Height

1405

1625

1915

1915

2125

2125

2600

Weight  Kg

420

440

680

740

960

1120

2300



Company Profile


Romiter Group concentrating on supply high efficient and high intelligent boiler for customer. Main products include wood pellet hot water boilers, wood pellet steam boiler, wood pellet burner, coal fired thermal oil heater, diesel oil fired thermal oil heaters, biomass steam generator(wood dust, corncob, bagasse, rice husk, palm kernel shell), coal fired hot air generator, wood pellet hot air furnace, electric steam generator, coal fired steam generator, coal water slurry steam generator, diesel oil or gas steam generator, thermal oil steam generators, heat recovery steam generator (HRSG).
