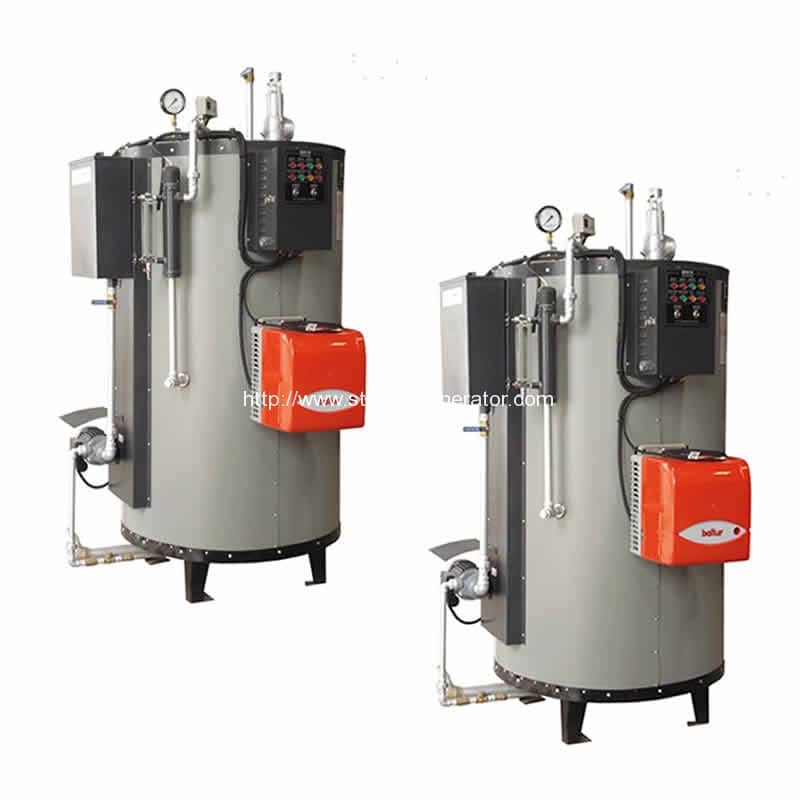

Water tube oil or gas fired steam generators / steam boilers are skided mounted boiler, which are easy for transportation and installation. Fire tube steam generators can adopt to different quality feeding water. It will create steam in 15 minutes from the start. Because of the compact design, and stable performance, it is widely used in laundry, hospitable, sterilizer, school and other industries.
Advantage Feature of Fire Tube Stam Generators
- High quality material: Adopt seamless steel tube material, through X ray test for safety operation. The boiler drum is with big water capacity, which can tolerate more variants.
- Automatic control: Fully automatic water level alarm, avoid overpressure, overheating, safe and secure. Fast start up and energy saving.
- Compact design: small size, easy for moving
- High efficient: >92% efficient reduce fuel cost.
- Safety operation: equipped with multiple safety control system of pressure, temperature and water level.
- High quality steam: the dryness of high quality steam is above 96%
- Europe brand burner: adopt Italy brand Balture burner
- Easy to install: customer can install the boiler by themselves, just need to connect with water source , power source and oil source, then it can start work.
Safety Technology of Fire Tube Steam Generators
- Water leakage protection: when the boiler leak water, the water level control will feedback signal to the control, the control unit will cut off the circuit and avoid damage, at the same time, the control unit begin the water leakage alarm.
- Pressure protection: when the pressure in the boiler reach rated pressure, the pressure control unit feedback signal to the control unit, the control unit will cutoff the circuit and avoids over-pressure.
- Overpressure protection: when the boiler pressure beyond the rated pressure and reach the top pressure, the safety valve open and release steam to reduce pressure. when the boiler pressure beyond the rated pressure and reach the top pressure, the safety valve open and release steam to reduce pressure.
Specification of Fire Tube Steam Generators
| Model | RWS0.05 | RWS0.08 | RWS0.1 | RWS0.15 | ||
| Rated Steam Capacity | Kg/h | 50 | 80 | 100 | 150 | |
| Heating Surface | ㎡ | 2.3 | 2.5 | 3.2 | 4.2 | |
| Rated Steam Pressure | MPa | 0.4 | 0.4 | 0.7 | 0.7 | |
| Rated Steam Temperature | oC | 152 | 152 | 170 | 170 | |
| Thermal Efficiency | % | ≥88 | ≥88 | ≥88 | ≥91 | |
| Fuel | Diesel oil or Natural gas | |||||
| Fuel Consumption | Diesel oil | kg/h | 3.28 | 5.28 | 6.62 | 10 |
| Natural Gas | N m3/h | 3.87 | 6.2 | 7.81 | 11.7 | |
| Entrance | DN | mm | G1/2″ | G1/2″ | G1/2″ | G1/2″ |
| Steam Outlet | mm | G1/2″ | G1/2″ | G3/4″ | G3/4″ | |
| Drain Outlet | mm | 40 | 40 | 40 | 40 | |
| Safety Valve | m | G1/2″ | G11/2″ | G11/2″ | G11/2″ | |
| Smoke Outlet | External Diameter | mm | Φ102 | Φ102 | Φ102 | Φ140 |
| Weight | Kg | 420 | 480 | 660 | 740 | |
| Length | mm | 953 | 953 | 1120 | 1350 | |
| Width | mm | 806 | 806 | 970 | 1030 | |
| Height | mm | 1700 | 1850 | 1890 | 2000 | |
