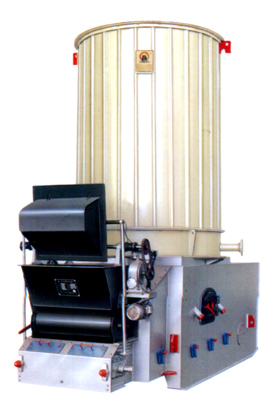

Vertical Chain Grate Thermal 0il Heater use coal as fuel, the thermal oil is heated on the tube. Using the
circulating pump to force the liquid circulation,and then transporting
the heat to the thermal equipment. At last, the oil return back the
thermal oil heater. All heaters are assembly structure which is easy for
installation by just connecting system device by pipes. Intelligent
system control makes boiler operation easier and more simple. Controller
with imitation screen display has auto igniting, burning, circulation
pumps control, alarm, etc. functions.
- Simple structure, low cost.
- Adoption of top-mounted tube structure with large heat absorption area,high heat efficiency, never been collapsed.
- Heat transfer oil enters into the boiler from the bottom and drains out from the top, which is reasonable for gas emission and improve the efficiency of heaters.
- Chain grate coal feeding, automatic slag remove and suitable for crushed coal, low fuel cost and labour strength
- No black smoke escapes to help achievement of environmental protection.
Technical Parameter Table
|rated thermal efficiency||%||≥ 73|
|Rated working pressure||Mpa||1.1|
|Max. working temperature||℃||340|
|Circulating oil Capacity||m3/h||20||30||40||60||80||100|
|Main valve size||DN||50||65||65||100||100||125|
|Whole system power||KW||15.9||18.35||18.35||25.9||31.5||43.45|
