Wood Pellet Hot Water Boilers

wood-pellet-hot-water-boilers

Wood pellet hot water boilers, as reliable, cost saving and enviroment friendly heating system, are widely used in domestic heating, hotel heating, hospitable and school heating and other hot water needed field. Romiter wood pellet boilers are equipped with high intelligent automatic control system for temperature control, wood pellets feeding speed control and ignition.

Wood Pellets


wood-pellet-fuel

Wood Pellets are made from natural wood. They are dry and usually have less than 10% moisture. A fine wood substance is compressed through a cylinder which can then disintegrate. The cylinders are small at 10cm diameter and the concentrated compression  makes them very dense; this factor leads them to have one of the best energy efficiency ratings when compared to other fuels.

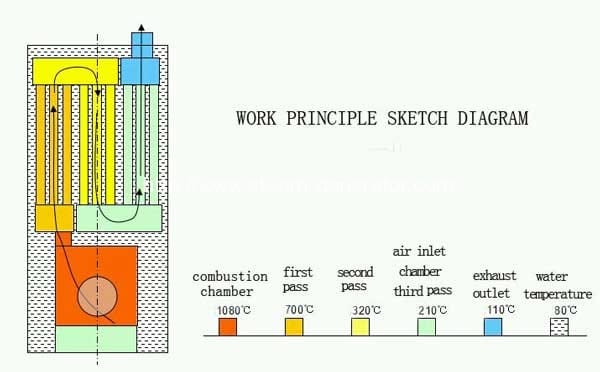

wood-pellet-hot-water-boilers-structure-drawing

Advantage Feature


  1. Induced Draught System: Adopt low noise, high temperature resistant, long axis fan. Imported axis make sure the long lifespan and stable operation.
  2. Automatic Ignition System: Switzerland imported double ignition device, high efficient, fast ignition and long lifespan. In order to make sure the fast and reliable ignition system, Romiter equipped two sets ignition device for each boiler( one work, one backup)
  3. Anti burnback feeding system: pellets feeding system adopt double stage screw feed. The first stage is for controlling the pellet feeding quantity to make sure enough pellet fuel. The second stage makes sure there is no excess pellet in the feed screw. So it is blank between the first stage and the second stage. There is no back-fire happen and make sure the safety operation. Through reducing the load of feeding system, the wood pellet boilers feeding device will have fewer fault.
  4. Intelligent Control: we adopt microcomputer one-button operation, automatic feed automatic ignition, with the setting temperature, start and stop cycle, and fault alarm function, simple and easy operation.
  5. Advanced combustion system: adopt Patent inside wood pellet burner, adopt special three side air supply system, which makes sure the pellet full combustion. Equipped heat recovery device makes the boiler efficiency can reach 92%.
  6. Safety operation: anti-back fire feeding system, temperature sensor, low water level protection device, over-temperature protection device.
  7. Easy to maintain: wood pellet hot water boilers belong to atmosphere hot water boilers. There is no need for professional stoker. It is automatic wood pellets feeding and automatic ignition. User just needs to add 1-2 times fuel per day. Ash cleaning is very easy, User just needs to take out of the ash bucket at the bottom of the chamber.
  8. Cost saving: wood pellet hot water boilers operation cost is just 1/3 of diesel oil hot water boilers and 1/5 electric heating hot water boilers.

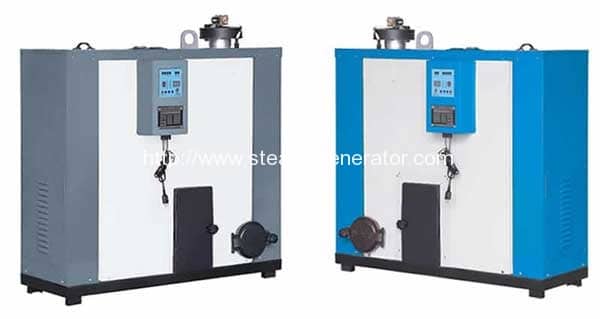

Wood-Pellet-Water-HeatersWood-Pellet-Water-Heaters-2

Parameter Table of Wood Pellet Hot Water Boilers


Smaller Type Wood Pellet Hot Water Boilers

Model

RVFW0.018

RVFW0.035

RVFW0.06

RVFW0.08

RVFW0.12

RVFW0.18

85/64-M

85/65-M

85/65-M

85/65-M

85/65-M

85/65-M

Rated Capacity(Btu)

60,000

119,000

200,000

270,000

400,000

600,000

Rated Capacity(Mw/h)

0.018

0.035

0.06

0.08

0.12

0.18

Rated Calorific Capacity (Kcal/h)

1.5×104

3×104

5×104

7×104

10×104

15×104

Theoretic Heating Area(S.M.)

80-150

150-280

300-400

400-600

600-800

800-1200

Thermal Efficiency

95%

Rated Outlet Temp.

85 celsius degree(185 F)

Operating pressure

Atmospheric

Power Voltage (v)

220

220

220

220

220

380

Power(w)

IDF

180

180

250

550

750

1500

Blower

120

120

180

250

370

250

Feeding

90

Igniter

2000

2000

2000

4000

4000

4000

Feeding reducer ratio(i)

250

150

Exhaust Flue Dia. (mm)

80

80

114

114

114

139

Water Inlet Caliber

1.5

1.5

1.5

2.0

2.0

2.5

Water Outlet Caliber

1.5

1.5

1.5

2.0

2.0

2.5

Drain out Caliber

1.5

1.5

1.5

2.0

2.0

2.5

Water Storage (kg)

240

280

350

380

450

560

Hoper Capacity (kg)

50

50

150

150

150

200

Fuel Consumption (kg/h)

3.8

7

12

17

24

36

Hot Water Output (t/h)

0.57

0.64

1.1

1.5

2.2

3.2

(In condtion of feeding water Temp.15 celsius degee and hot water Temp. 55 celsius degree)

Boiler Proper Size
(mm)

L

600

800

1280

1330

1450

1750

W

460

460

550

550

600

670

H

1200

1200

1100

1300

1380

1420

Transportation
Weight (kg)

210

252

393

509

590

642

Large Type Wood Pellet Hot Water Boilers

Model

RVFW0.24

RVFW0.35

RVFW0.48

RVFW0.7

RVFW1.05

RVFW1.4

85/65-M

85/65-M

85/65-M

85/65-M

85/65-M

85/65-M

Rated Capacity(Btu)

800,000

1,190,000

1,600,000

2,380,000

3,570,000

4,760,000

Rated Capacity (Mw/h)

0.24

0.35

0.48

0.7

1.05

1.4

Rated Calorific Capacity (Kcal/h)

20×104

30×104

40×104

60×104

90×104

120×104

Theoretic Heating Area(S.M.)

1200-1600

1600-2400

2400-3200

3200-4800

4800-7000

7000-8600

Thermal Efficiency

95%

Rated Outlet Temp.

85 celsius degree(185 F)

Operating pressure

Atmospheric

Power Voltage (v)

380

380

380

380

380

380

Power(w)

IDF

1500

2200

2200

3000

5000

7500

Blower

250

370

370

750

750

1500

Feeding

90

Igniter

4000

4000

4000

4000

4000

4000

Exhaust Flue Dia. (mm)

159

159

159

219

273

300

Water Inlet Caliber

2.5

3.0

3.0

4

4

4

Water Outlet Caliber

2.5

3.0

3.0

4

4

4

Drain out Caliber

2.5

2.5

2.5

2.5

2.5

2.5

Water Storage (kg)

800

980

1100

1300

1950

2350

Hoper Capacity (kg)

200

200

200

280

280

280

Fuel Consumption (kg/h)

48

70

96

140

210

280

Hot Water Output (t/h)

4.3

6.4

8.5

12.8

19.1

25.5

(In condtion of feeding water Temp.15 celsius degee and hot water Temp. 55 celsius degree)

Boiler Proper Size
(mm)

L

1860

2320

2320

2850

Φ1370

Ø1620

W

720

980

980

1150

Φ1370

Ø1620

H

1580

1760

1960

2210

2800

3500

Transportation Weight (kg)

1022

1428

1768

2229

3126

4138

Company Profile


Romiter Group concentrating on supply high efficient and high intelligent boiler for customer. Main products include wood pellet hot water boilers, wood pellet steam boiler, wood pellet burner, coal fired thermal oil heater, diesel oil fired thermal oil heaters, biomass steam generator(wood dust, corncob, bagasse, rice husk, palm kernel shell), coal fired hot air generator, wood pellet hot air furnace, electric steam generator, coal fired steam generator, coal water slurry steam generator, diesel oil or gas steam generator, thermal oil steam generators, heat recovery steam generator (HRSG).
