YLL Chain Grate Coal Fired Thermal Oil Heaters

YLL Chain Grate Coal Fired Thermal Oil Heaters Thermal fluid heating is a type of indirect heating in which a liquid phase heat transfer medium is heated and circulated t ...
Product Details

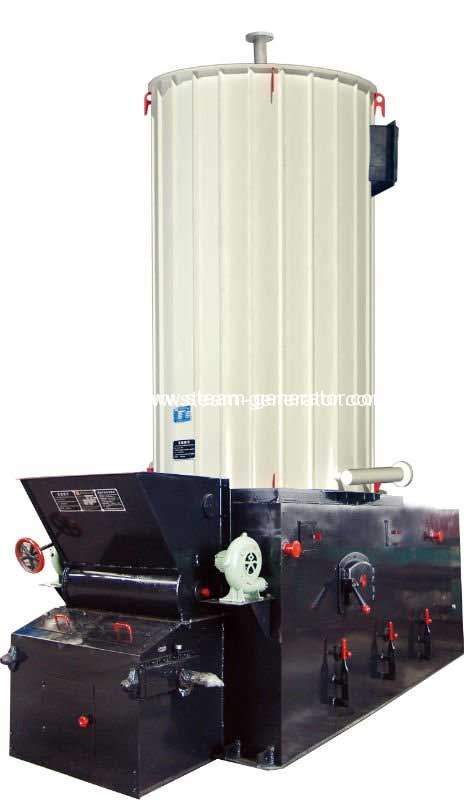

YLL-Chain-Grate-Coal-Fired-Thermal-Oil-Heaters-2

YLL Chain Grate Coal Fired Thermal Oil Heaters


Thermal fluid heating is a type of indirect heating in which a liquid phase heat transfer medium is heated and circulated to one or more heat energy users within a closed loop system.

Romiter YLL series vertical chain grate thermal fluid heater is designed for small heat energy users in a very economical way. Coal feeding and cinder discharging are highly automatical. The cinder discharging port is water sealed to creat negetive combustion condition for safety and cooling the grate.

Advantage Feature of YLL Chain Grate Coal Fired Thermal Oil Heaters


1) The heat output can be 500 kw to 1400 kw;

2) The heat efficiency is higher than 78%

3) Max oil output temperature is about 320 °C

4) Heating source can be coal and wood pellets

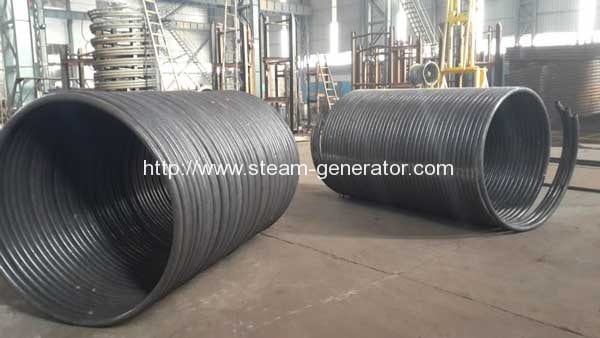

5) Double helical coil design allows three passes of flue gas along conservatively designed coil surface area

6) Complete control systems are engineered to optimize system safety and performance. We can supply simple and cost effective standard panels, as well as full process automation and PLC based combustion control / BMS.

7) Minimum maintenance:
Flue gasses are significantly cooled therefore eliminating the need for most internal shell insulation. This minimizes long term insulation maintenance and / or replacement.

8) Insulation: The heater shell is externally insulated with mineral wool insulation and covered with aluminum cladding.

9) Economizer: With
the typical elevated operating temperatures associated with thermal oil systems, it can be difficult to obtain high efficiencies in the heater
alone. We offer a wide variety of economizers to fit your process requirements, increase your thermal efficiencies, and lower your
operating costs. The economizer can be combustion air preheat, water heater etc.

YLL-Chain-Grate-Coal-Fired-Thermal-Oil-Heaters-3

YLL-Chain-Grate-Coal-Fired-Thermal-Oil-Heaters

Parameter Table of YLL Chain Grate Coal Fired Thermal Oil Heaters


Parameter YLL-700MA YLL-1000MA YLL-1200MA YLL-1400MA YLL-2000MA
(60×104Kcal) (80×104Kcal) (100×104Kcal) (120×104Kcal) (160×104Kcal)
Rated Thermal Power kW 700 1000 1200 1400 2000
Thermal Efficiency %                76               78
Pressure Mpa 1.1 1.1 1.1 1.1 1.1
Max. Temp. °C 340 340 340 340 340
Circulation Oil m3/h 60 80 100 120 160
Pipe DN 100 100 125 125 150
System Power kW 35 42 49.5 49.5 75
Fuel
Coal & Wood
Fuel Weight kg/h 156 208 274 300 400
Dimension L mm 4710 4751 4710 4710 5821
W mm 1995 2170 2260 2320 2620
H mm 4145 4751 4995 5570 6430
Total Weight kg 10500 12000 13000 14000 20000
