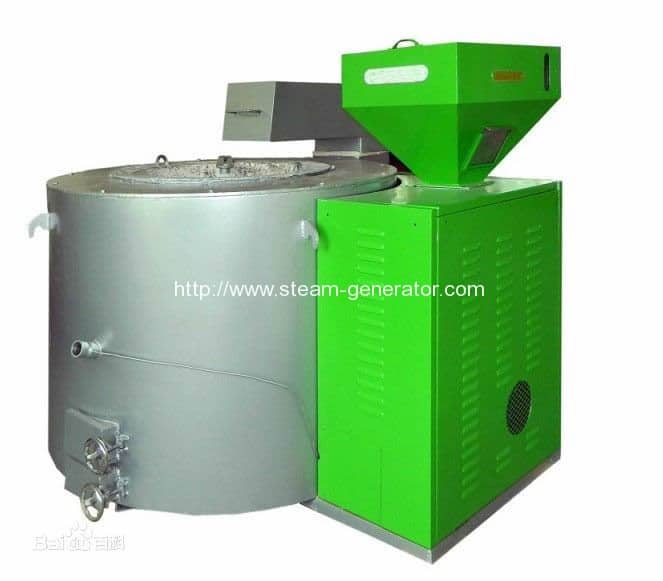

Romiter Machinery’s new biomass pellet melting aluminum insulation furnace combining the molten aluminum technology, mainly used for melting or melting aluminum, zinc, lead, tin, cadmium and other low melting non-ferrous metal and alloy, Generally with die casting machine,also can be used in liquid aluminum insulation, depassing, refined. With high efficiency and energy saving, low carbon enviromental protection, operation simple maintenance, is the alternative fuel, gas, coke oven, electric stove in the best products, can help enterprises reduce 30%-60% of the energy consumption costs.
Biomass Pellets are made from natural wood or agri waste. They are dry and usually have less than 10% moisture. A fine wood substance is compressed through a cylinder which can then disintegrate. The cylinders are small at 10cm diameter and the concentrated compression makes them very dense; this factor leads them to have one of the best energy efficiency ratings when compared to other fuels.
Fuel Cost Comparison for Aluminium Melting Furnace
|Kinds of fuel||Electric||Diesel oil||Natural gas||Biomass wood pellet|
|Heat value of fuel||860kcal/kw||10200/kg||8500kcal/nm3||4000kcal/kg|
|Consumptions of aluminium/t||500 W||100kg||120Nm3||250kg|
|Cost of aluminium/t||RMB450||RMB800||RMB576||RMB275|
|Dissolved aluminum water/day||1.6t||1.6t||1.6t||1.6t|
|Cost per day||RMB720||RMB1280||RMB921.6||RMB440|
|Biomass to save every day||RMB280||RMB840||RMB481.6|
|Biomass to save every month||RMB8400||RMB25200||RMB14430|
|Biomass to save every year||RMB84000||RMB252000||RMB144300|
|Rate of Energy||38%||65%||52%|
Advantage Feature of Biomass Pellets Fired Aluminum Melting Furnace
- Environment friendly renewable fuel: no smoke, clean and renewable. The sulfur content , ash content, nitrogen content is very lower than carbon and oil. Biomass fuel can realize zero emission, which is called “Green-coal”
- Low cost and high efficient: the cost for using biomass pellet is very low than oil. Help factory save a lot of investment and reduce cost. The biomass pellets fired aluminum melting furnace cost is just 1/2 oil fired aluminum melting furnace or 1/3 electric heating aluminum melting furnace.
- Pellet is easy to transport: compressed biomass fuel as pellet, which makes the fuel easy transport, high calorific value and easy to store.
Technical Parameter Table
We can provide 300kg/h to 800kg/h device for customer , other capacity please contact with us, we can provide customized aluminum melting furnace
Working Video of Aluminium Melting Furnace
